| MODEL | KDYM09 |
| Main board | KM01N Gun Ball 4G/ Low power Minion integrated board |
| System structure | AliOS operating system |
| Sensor size | 1/2.8" Progressive Scan |
| illuminance | Chroma: 0.1Lux@(F2.0,AGC ON),0 Lux with Light |
| Lens | 4.0mm_F1.6+4.0mm_F1.6 |
| Image compression format | H.265_AVI |
| pixel | 6MP |
| Resolution | 2304X2595 |
| Frame rate | 15fps |
| shutter | 1/3s~1/100,000s |
| Day-night switching mode | IR-CUT infrared filter supports infrared/full color/intelligent three |
| Noise reduction | 3D noise reduction is supported |
| Wide dynamic | Supports digital wide dynamic |
| Image inversion | Supports horizontal and vertical flip |
| Image enhancement | 3D digital noise reduction, strong light suppression, digital wide dynamic |
| Audio format | AAC |
| Audio compression bit rate | 8kbps |
| Audio interface | Built-in 1 microphone, 1 speaker |
| 4G network | LTE4G network -SIM card LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| IR signal interface | 1 photosensitive interface,1 IR-CUT driver interface, support dual light source board control (dual IO control, no need for light board MCU) |

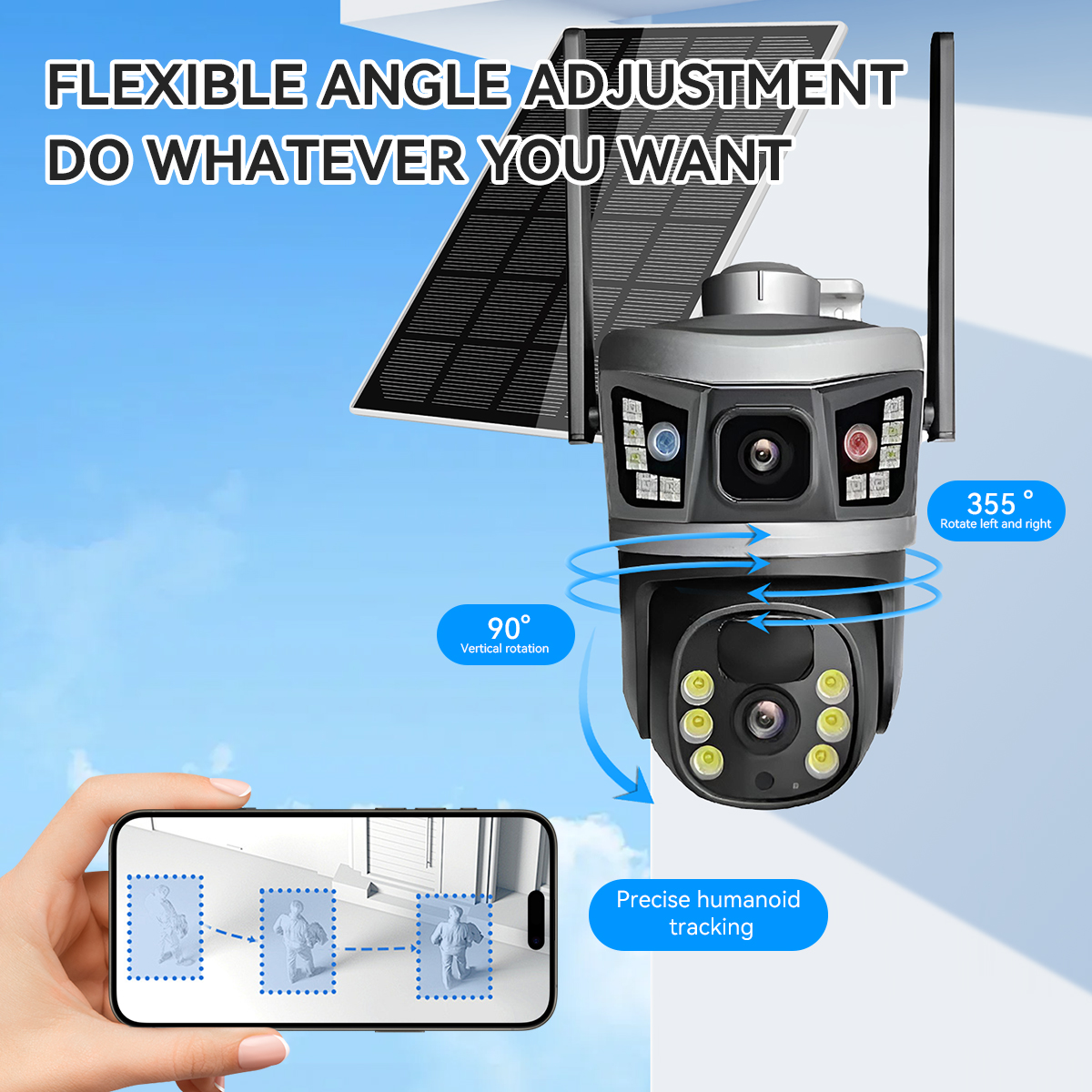

| PTZ control | Support up, down, left and right PTZ remote control |
| General function | NTP time calibration, time watermarking, support Micro SD card (128G) local storage |
| Anomaly detection | Motion detection, motion tracking, humanoid detection |
| factory data reset | Module reset key recovery or device body recovery |
| Other functions | Motion detection; Push alarm information; Support mobile phone remote monitoring; |

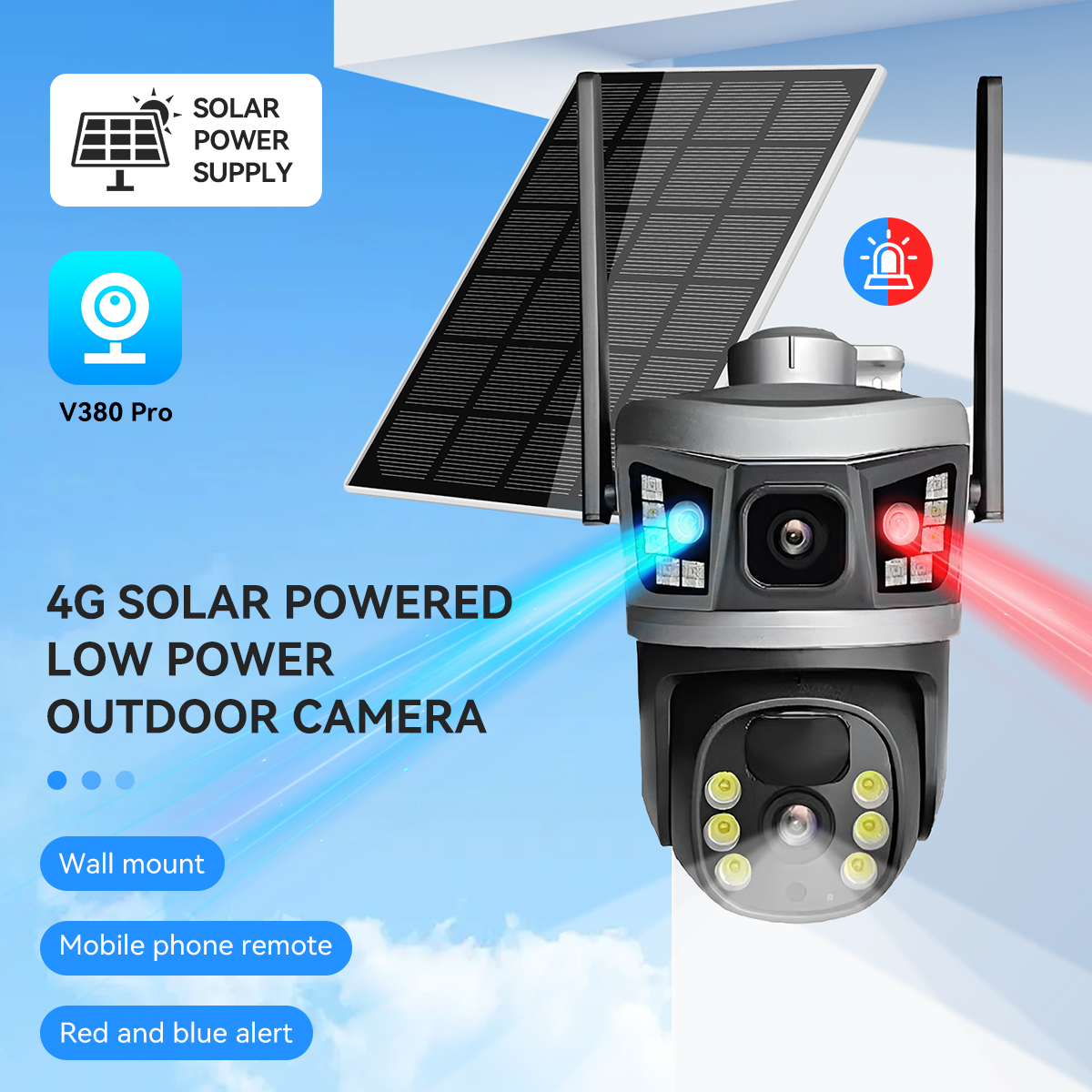

| Power supply | Photovoltaic cell power supply /DC 5V/2A (max) |
| Power dissipation | MAX≤5W |
| Photovoltaic panel power | 7W |
| Working environment adaptability | Operating temperature: -10℃~+50℃; Operating humidity: The relative humidity is less than or equal to 75 |
| Night vision distance | Infrared light 10m ~ 15m (depending on the specific environment) |
| Plate size | Minions 32*32 boards (gun module) /38*38 (ball module) |
| Carton size | 52.5X41.5X56.9CM |
| Packing quantity | 12 PCS |
