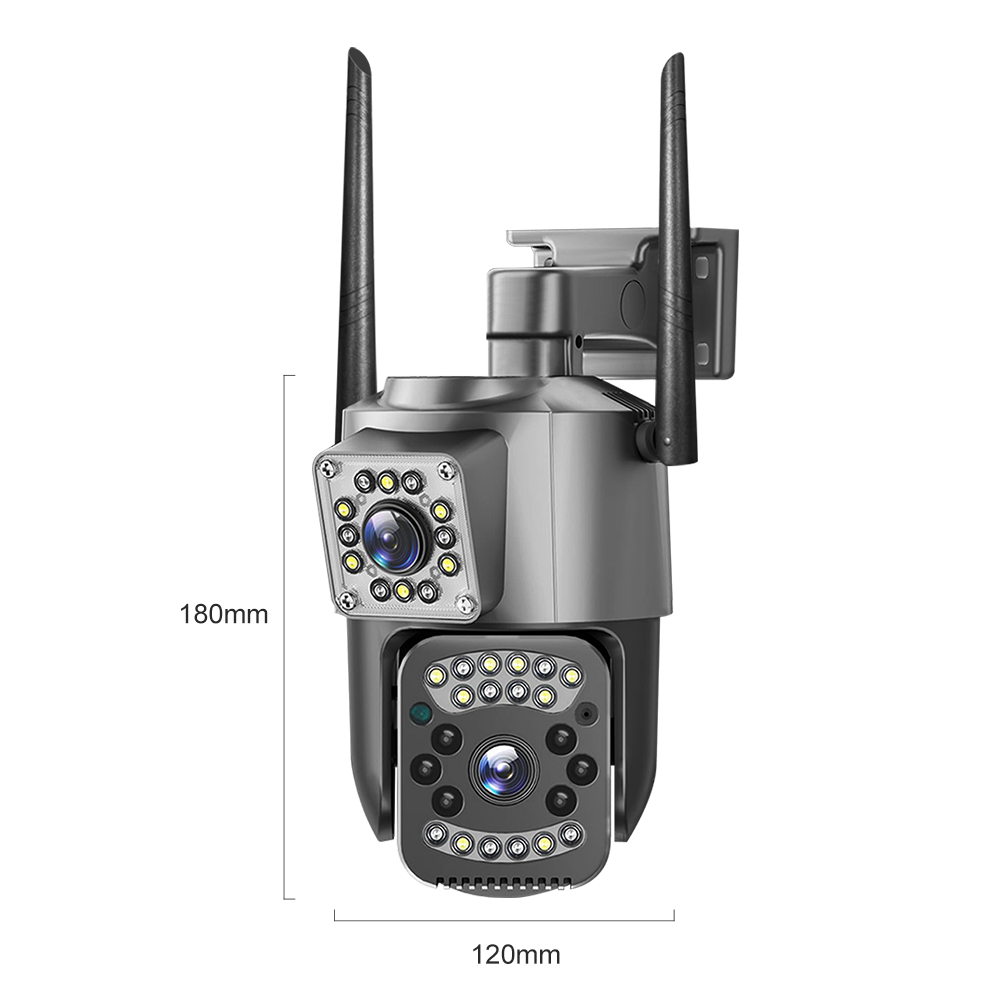

| Model: KDSC03-4G/WIFI | |
| SENSOR | 1/2.9" MIS2008*2 |
| Resolution | 2MP+2MP |

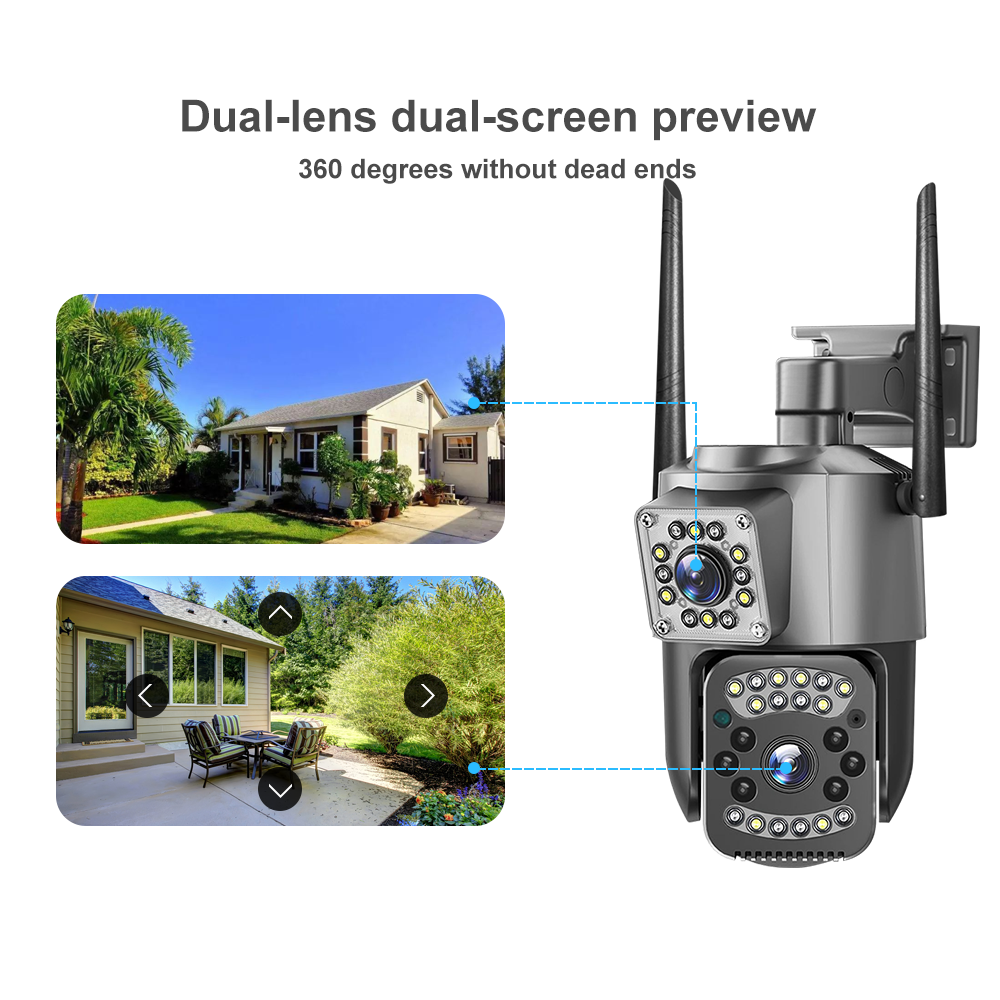

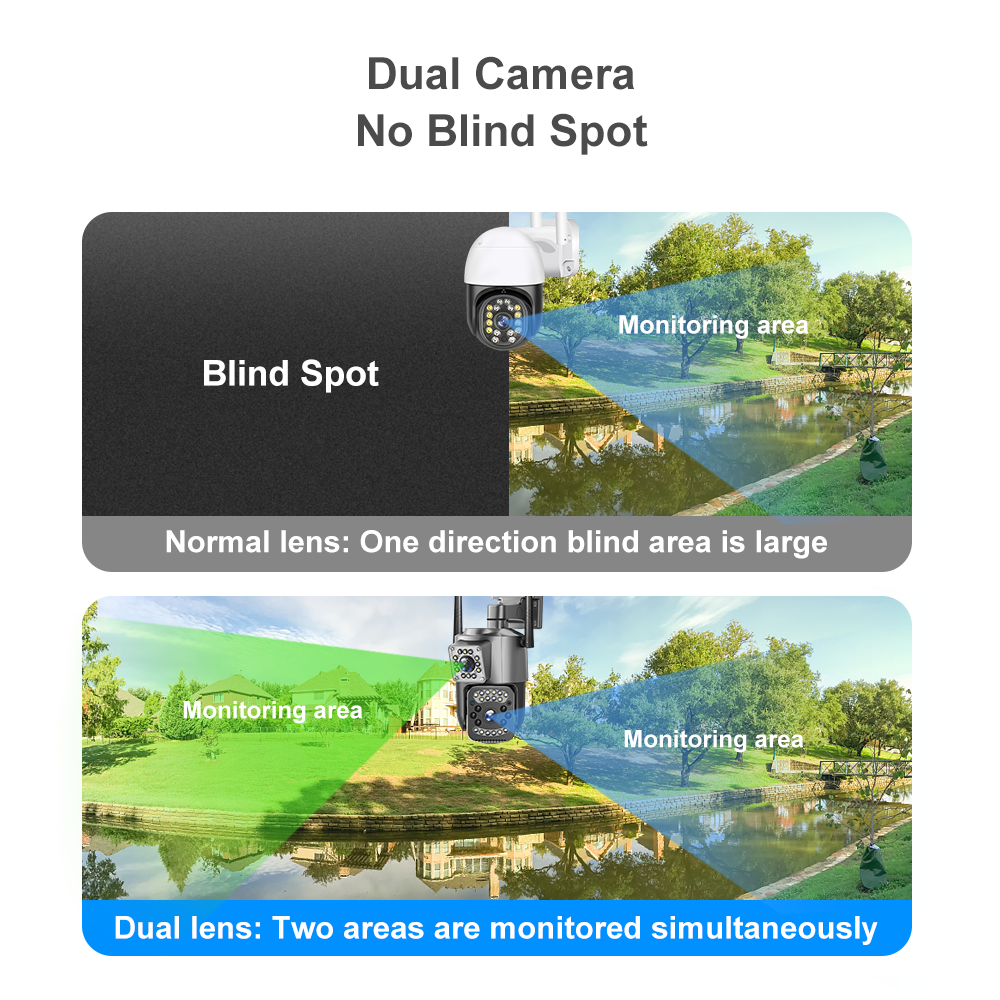

| Lens | 3.6mm Horizontal viewing angle: 80°*2 |

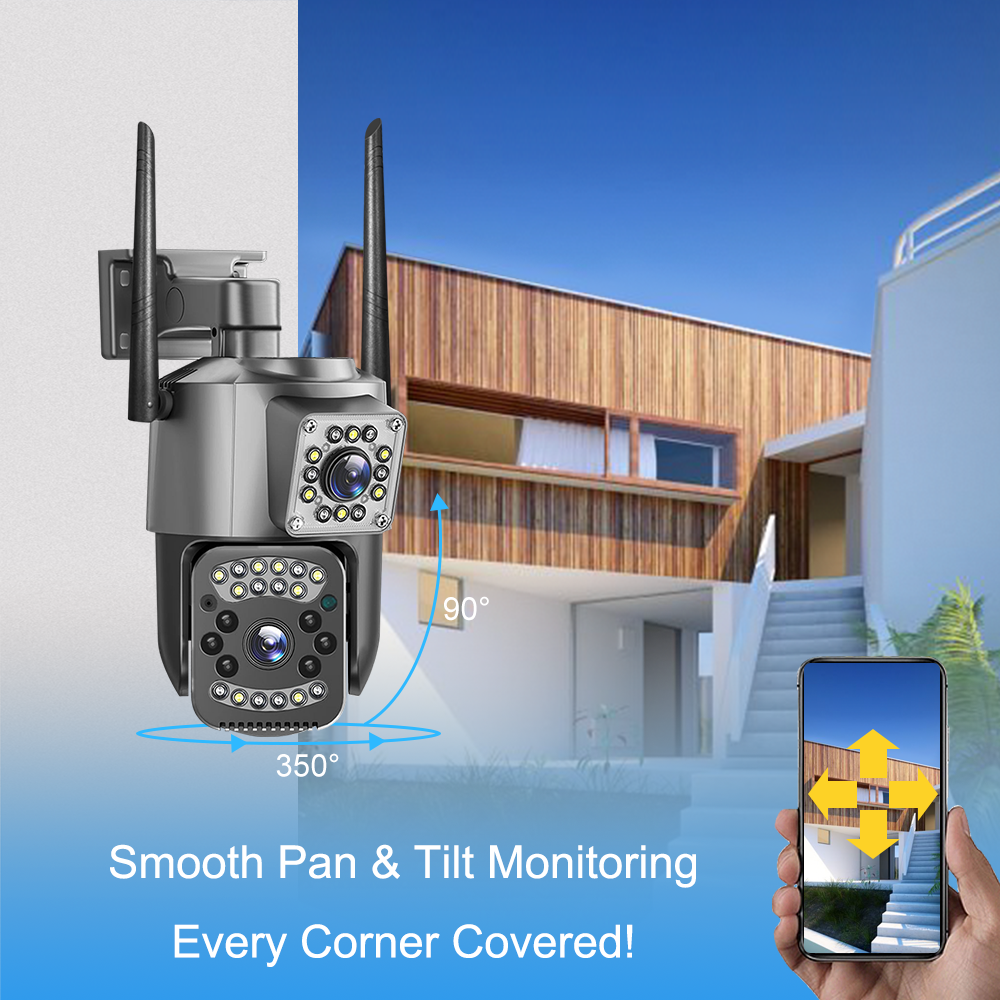

| PTZ adjustment function | Electronic PTZ - Horizontal: 350° Vertical: up to 90° |
| Video | H.265/15FPS, HD(1080P) |
| Night vision | IR-CUT automatic switching, about 8 meters (depending on the environment) |
| Number of lamp beads | Ball: 8 infrared + 8 white light, gun: 5 infrared + 6 white light |
| Wi-Fi Antenna Mode | External strip antenna/2 pieces |
| Minimum illumination | 0.02Lux@(F2.0,VGC ON),O.Luxwith IR |
| Network Interface | RJ-45 interface 10M/100M adaptive Ethernet interface |
| Network | LTE-FDD:B1/3/5/8 LTE-TDD:B38/39/40/41 |
| Audio | Built-in omnidirectional noise reduction microphone and speaker, supports two-way real-time audio transmission, ADPCM audio compression standard, adaptive bit stream |
| Alarm | Support voice alarm and picture push |
| Storage | Cloud storage service: Micro SD/TF (maximum 128G) |
| Power | DC12V/2A |
| Work Environment | (-10°-50°C), humidity less than 95% (no condensation) |
| Installation | Wall mount, ceiling mount |
| Gift box size | 220*138*160MM |
| Ctn size | 71*46*50CM |
