| Model: | KDS304-WIFI/KDS304-4G | |||
| APP: | V380 Pro | |||
| System structure: | Embedded Linux system, ARM chip structure | |||
| Resolution: | 1+1+1=3MP | |||
| Sensor Resolution: | 1/4.6" Progressive Scan CMOS（SC1346*3） | |||
| Lens: | 3*4MM | |||
| View angle: | 3*80° | |||
| Pan-tilt: | Rotates Horizontal:355° Vertical：90° | |||
| Preset point quantity: | 6 | |||
| Video compression standard: | H.265/15FPS | |||
| Video format: | PAL | |||
| Minimum illumination: | 0.01Lux@（F2.0，VGC ON),O.Luxwith IR | |||
| Electronic shutter: | Auto | |||
| Backlight compensation: | Support | |||
| Noise reduction: | 2D、3D | |||
| LED quantity: | Right camera: 6pcs Dual Core LED Left camera: 6pcs Dual Core LED PTZ camera: 11pcs Dual Core LED | |||

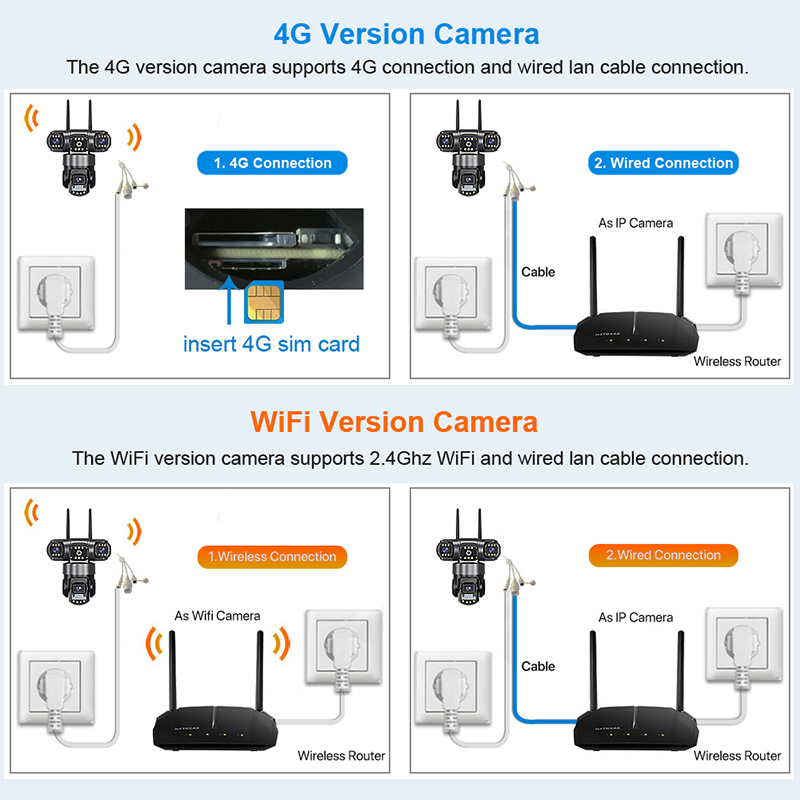

| Network connection: | Suport 4G-SIM card and adapt to RJ45 Network port | |||
| Band | B1/3/5/8/38/39/40/41 | |||
| Night vision | IR-CUT switch Automatic，about 5-8meters (It varies from environment) White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto (In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision auto , it can intelligently detected human body, and Turn ON/OFF the White light intelligently ) | |||
| Audio: | Built-in microphone and speaker, support two-way audio and real-time transmission. ADPCM audio compression standard, self-adapt to code stream | |||
| Network protocol: | TCP/IP、DDNS、DHCP | |||
| Alarm: | ①Motion detection and picture push ②AI Human intrusion Detection | |||
| Storage: | TF Card（Max 128G）；Cloud storage /Cloud disk (optional) | |||
| Power input: | 12V/2A (not including power supply) | |||
| Work environment: | Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH | |||
| Color box: | 21*15.5*21.5mm | |||
| Work environment: | 66*45*68cm | |||
| Quantities: | 24PCS | |||
